Kawneer modular Aluminium Window, Door and Façade Systems

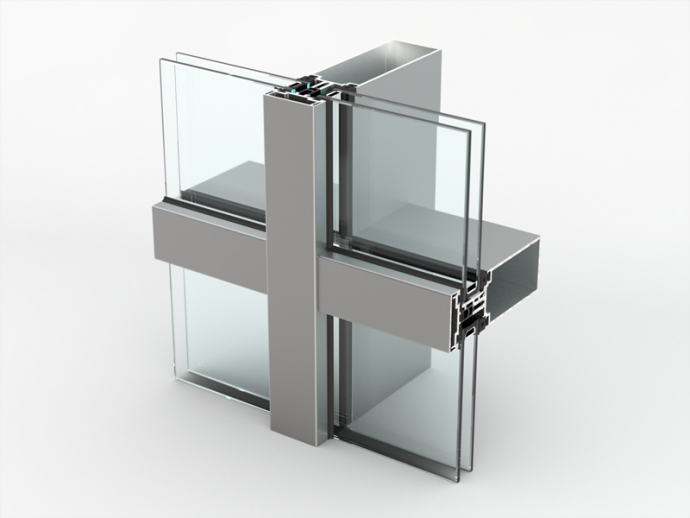

The AA 100 Q aluminium curtain wall system of Kawneer is designed for simple set up and mount and a large number of possible variations. Variable configurations include: type of water drainage, compartment or channel drainage, and which cover strips to use for the outside of the facade. Within the AA 100 Q it is also possible to construct a (semi-)structural facade. All variants are based on the same internal construction. Different facade solutions are possible in terms of design, anti-theft, fire resistance and (hidden) movable parts.
This certificate covers the following products:
AA 100 Q Aluminium Curtain Wall
RT 72 HI+
RT 72 Reflex 1,2
RT 72 Reflex 1,4
RT 72 Reflex 1,6
RT 82 HI+
The minimum mullion depth is 65mm and minimum transom depth is 25mm, all greater depths are also covered. The minimal grid size is 120cm wide (mullion to mullion) by 120cm tall (transom to transom), all greater widths and heights are covered until the maximum is reached as specified in the product manual.
